| Product Description: | ||||||||
| ■Tinned ,annealed,stranded or solid copper conductor. | ||||||||
| ■PVC/SR-PVC/PP/TPU/XL-PE insulation. | ||||||||
| ■TPU jacketed. | ||||||||
| ■Rated temperature:80℃.Rated voltage:300volts | ||||||||
| ■Uniform thickness of wire to ensure easy stripping and cutting. | ||||||||
| ■Passes UL VW-1&CUL FT1/FT2 vertical flamt test | ||||||||
| ■Tinned or bare copper winding or woven isolation. | ||||||||
| ■A collection of cores can be isolated tissue-paper package. | ||||||||
| aluminum foil or mylar. | ||||||||
| ■Executive Standard:UL758 UL1581 CSA22.2. | ||||||||
| 說明： | ||||||||
| ■導體使用單股或絞線裸銅或鍍錫銅 | ||||||||
| ■PVC/SR-PVC/PP/TPU/XL-PE絕緣。 | ||||||||
| ■TPU外覆。 | ||||||||
| ■額定溫度：80℃額定電壓：300Volts | ||||||||
| ■使用標準厚度，易剝，截斷容易。 | ||||||||
| ■可通過ULVW-1及CUL FT1/FT2，垂直燃燒測試。 | ||||||||
| ■鍍錫或裸銅或編織隔離。 | ||||||||
| ■芯線集合可包鋁箔麥拉或棉紙隔離。 | ||||||||
| ■執行標準:UL758 UL1581 CSA22.2. | ||||||||
| APPlications: | ||||||||
| ■For general purpose internal wiring of | ||||||||
| 應用： | ||||||||
| ■用于電子及電器設備內部配線 | ||||||||
| Construction: | ||||||||
| 構造： | ||||||||
|
UL Style &CSA Type |
Conductor Cores 導體芯數 |
Conductor 導體 |
Insulation Thickness 絕緣厚度 |
Nom.Dia 絕緣線徑 |
Jacket Thickness 被覆厚度 |
Overall Dimeter 完成外徑 |
Conductor Resistance at 20℃導體電阻 |
|
| 線號 | 線數/線徑 | |||||||
| AWG | No/mm | mm | mm | mm | mm | Ω/KM | ||
|
UL20549 （Stranded) 絞線 |
2C | 30 | 7/0.10 | 0.25 | 0.80 | 0.6 | 3.00 | 381.00 |
| 28 | 7/0.127 | 0.90 | 3.20 | 239.00 | ||||
| 26 | 7/0.16 | 1.00 | 3.50 | 150.00 | ||||
| 24 | 11/0.16 | 1.10 | 3.80 | 94.20 | ||||
| 22 | 17/0.16 | 1.30 | 4.20 | 59.40 | ||||
| 20 | 21/0.178 | 1.50 | 4.60 | 36.70 | ||||
| 18 | 34/0.178 | 1.80 | 5.20 | 23.20 | ||||
| 3C | 30 | 7/0.10 | 0.25 | 0.80 | 0.6 | 3.20 | 381.00 | |
| 28 | 7/0.127 | 0.90 | 3.60 | 239.00 | ||||
| 26 | 7/0.16 | 1.00 | 3.90 | 150.00 | ||||
| 24 | 11/0.16 | 1.10 | 4.20 | 94.20 | ||||
| 22 | 17/0.16 | 1.30 | 4.40 | 59.40 | ||||
| 20 | 21/0.178 | 1.50 | 4.90 | 36.70 | ||||
| 18 | 34/0.178 | 1.80 | 5.60 | 23.20 | ||||
| 4C | 30 | 7/0.10 | 0.25 | 0.80 | 0.8 | 3.80 | 381.00 | |
| 28 | 7/0.127 | 0.90 | 4.30 | 239.00 | ||||
| 26 | 7/0.16 | 1.00 | 4.60 | 150.00 | ||||
| 24 | 11/0.16 | 1.10 | 4.80 | 94.20 | ||||
| 22 | 17/0.16 | 1.30 | 5.30 | 59.40 | ||||
| 20 | 21/0.178 | 1.50 | 5.80 | 36.70 | ||||
| 18 | 34/0.178 | 1.80 | 6.60 | 23.20 | ||||
| 5C | 30 | 7/0.10 | 0.25 | 0.80 | 0.8 | 4.30 | 381.00 | |
| 28 | 7/0.127 | 0.90 | 4.70 | 239.00 | ||||
| 26 | 7/0.16 | 1.00 | 5.00 | 150.00 | ||||
| 24 | 11/0.16 | 1.10 | 5.40 | 94.20 | ||||
| 22 | 17/0.16 | 1.30 | 5.80 | 59.40 | ||||
| 20 | 21/0.178 | 1.50 | 6.40 | 36.70 | ||||
| 18 | 34/0.178 | 1.80 | 7.00 | 23.20 | ||||
| 6C | 30 | 7/0.10 | 0.25 | 0.80 | 0.8 | 4.60 | 381.00 | |
| 28 | 7/0.127 | 0.90 | 4.90 | 239.00 | ||||
| 26 | 7/0.16 | 1.00 | 5.40 | 150.00 | ||||
| 24 | 11/0.16 | 1.10 | 5.60 | 94.20 | ||||
| 22 | 17/0.16 | 1.30 | 6.30 | 59.40 | ||||
| 20 | 21/0.178 | 1.50 | 6.80 | 36.70 | ||||
| 18 | 34/0.178 | 1.80 | 7.80 | 23.20 | ||||
| 以上數據僅供參考，不作為正式的設計依據，產品規格以雙方確認的規格書承認為準！最終解釋權規穩暢電子制品有限公司所有 | ||||||||

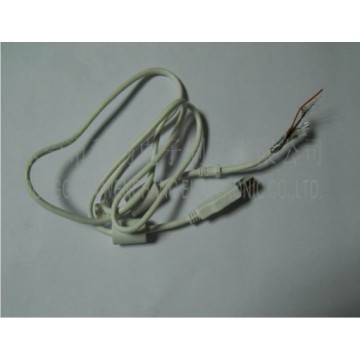

點擊圖片查看原圖
