Product Description:
|
|
■Tinned ,annealed,stranded or solid copper conductor.
|
|
■PE FR-PE insulation
|
|
■FR-PE jacketed
|
|
■Tinned or bare copper wire spiral
|
|
■Rated temperature:75℃.Rated voltage:600Volts
|
|
■Passes UL VW-1 vertical flamt test
|
|
說明：
|
|
■導體使用單股或絞線裸銅或鍍錫銅。
|
|
■PE FR-PE絕緣
|
|
■FR-PE被覆
|
|
■裸銅或鍍錫銅絲，纏繞屏蔽
|
|
■額定溫度：75℃額定電壓：600Volts
|
|
■可通過UL VW-1 ，垂直燃燒測試
|
|
Applications:
|
|
■Internal wiring or external interconnection of electronic equipment.
|
|
應用：
|
|
■用于電子設備內部布線或外部連接。
|
|
UL Style Type
|
Cores
芯數
|
Conductor
導體
|
Insulation
Thickness
絕緣厚度
|
Nom.Dia
|
Spiral shield
纏繞隔離
|
Jacket Thickness
被覆厚度
|
Overall
Diameter
完成外徑
|
Conductor
Resistance at 20℃導體電阻
|
|
線號
|
線數/線徑
|
|
AWG
|
No/mm
|
mm
|
mm
|
NO/mm
|
mm
|
mm
|
Ω/KM
|
UL21089
（Stranded)
絞線
|
2C
|
30
|
7/0.10
|
0.23
|
0.80
|
41/0.1
|
0.76
|
3.40
|
381.00
|
|
28
|
7/0.127
|
0.26
|
0.90
|
46/0.1
|
0.76
|
3.70
|
239.00
|
|
26
|
7/0.16
|
0.26
|
1.00
|
54/0.1
|
0.76
|
3.90
|
150.00
|
|
24
|
11/0.16
|
0.26
|
1.10
|
62/0.1
|
0.76
|
4.10
|
94.20
|
|
22
|
17/0.16
|
0.26
|
1.30
|
62/0.12
|
0.76
|
4.40
|
59.40
|
|
20
|
21/0.178
|
0.26
|
1.50
|
72/0.12
|
0.76
|
4.90
|
36.70
|
|
18
|
34/0.178
|
0.26
|
1.70
|
82/0.12
|
0.76
|
5.30
|
23.20
|
|
3C
|
30
|
7/0.10
|
0.23
|
0.80
|
46/0.1
|
0.76
|
3.50
|
381.00
|
|
28
|
7/0.127
|
0.26
|
0.90
|
53/0.1
|
0.76
|
3.90
|
239.00
|
|
26
|
7/0.16
|
0.26
|
1.00
|
62/0.1
|
0.76
|
4.00
|
150.00
|
|
24
|
11/0.16
|
0.26
|
1.10
|
69/0.1
|
0.76
|
4.30
|
94.20
|
|
22
|
17/0.16
|
0.26
|
1.30
|
72/0.12
|
0.76
|
4.60
|
59.40
|
|
20
|
21/0.178
|
0.26
|
1.50
|
82/0.12
|
0.76
|
5.00
|
36.70
|
|
18
|
34/0.178
|
0.26
|
1.70
|
96/0.12
|
0.76
|
5.50
|
23.20
|
|
4C
|
30
|
7/0.10
|
0.23
|
0.80
|
56/0.1
|
0.76
|
3.70
|
381.00
|
|
28
|
7/0.127
|
0.26
|
0.90
|
56/0.12
|
0.76
|
4.00
|
239.00
|
|
26
|
7/0.16
|
0.26
|
1.00
|
63/0.12
|
0.76
|
4.30
|
150.00
|
|
24
|
11/0.16
|
0.26
|
1.10
|
71/0.12
|
0.76
|
4.60
|
94.20
|
|
22
|
17/0.16
|
0.26
|
1.30
|
81/0.12
|
0.76
|
5.00
|
59.40
|
|
20
|
21/0.178
|
0.26
|
1.50
|
92/0.12
|
0.76
|
5.40
|
36.70
|
|
18
|
34/0.178
|
0.26
|
1.70
|
107/0.12
|
0.76
|
6.00
|
23.20
|
|
5C
|
30
|
7/0.10
|
0.23
|
0.80
|
68/0.1
|
0.76
|
3.90
|
381.00
|
|
28
|
7/0.127
|
0.26
|
0.90
|
62/0.12
|
0.76
|
4.30
|
239.00
|
|
26
|
7/0.16
|
0.26
|
1.00
|
71/0.12
|
0.76
|
4.50
|
150.00
|
|
24
|
11/0.16
|
0.26
|
1.10
|
79/0.12
|
0.76
|
4.90
|
94.20
|
|
22
|
17/0.16
|
0.26
|
1.30
|
90/0.12
|
0.76
|
5.30
|
59.40
|
|
20
|
21/0.178
|
0.26
|
1.50
|
103/0.12
|
0.76
|
5.80
|
36.70
|
|
18
|
34/0.178
|
0.26
|
1.70
|
120/0.12
|
0.76
|
6.50
|
23.20
|
|
6C
|
30
|
7/0.10
|
0.23
|
0.80
|
59/0.12
|
0.76
|
4.10
|
381.00
|
|
28
|
7/0.127
|
0.26
|
0.90
|
71/0.12
|
0.76
|
4.60
|
239.00
|
|
26
|
7/0.16
|
0.26
|
1.00
|
79/0.12
|
0.76
|
4.90
|
150.00
|
|
24
|
11/0.16
|
0.26
|
1.10
|
88/0.12
|
0.76
|
5.30
|
94.20
|
|
22
|
17/0.16
|
0.26
|
1.30
|
101/0.12
|
0.76
|
5.70
|
59.40
|
|
20
|
21/0.178
|
0.26
|
1.50
|
114/0.12
|
0.76
|
6.30
|
36.70
|
|
7C
|
30
|
7/0.10
|
0.23
|
0.80
|
59/0.12
|
0.76
|
3.40
|
381.00
|
|
28
|
7/0.127
|
0.26
|
0.90
|
71/0.12
|
0.76
|
3.70
|
239.00
|
|
26
|
7/0.16
|
0.26
|
1.00
|
79/0.12
|
0.76
|
4.80
|
150.00
|
|
24
|
11/0.16
|
0.26
|
1.10
|
88/0.12
|
0.76
|
5.30
|
94.20
|
|
22
|
17/0.16
|
0.26
|
1.30
|
101/0.12
|
0.76
|
5.70
|
59.40
|
|
20
|
21/0.178
|
0.26
|
1.50
|
114/0.12
|
0.76
|
6.30
|
36.70
|
|
以上數據僅供參考，不作為正式的設計依據，產品規格以雙方確認的規格書承認為準！最終解釋權歸穩暢電子制品有限公司所有
|

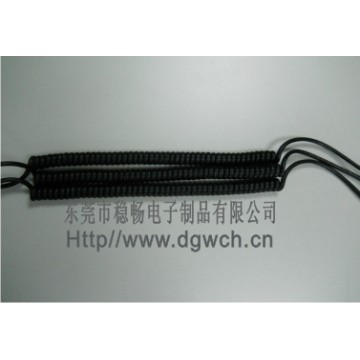

點擊圖片查看原圖
