Product Description:
|
|
■Tinned ,annealed,stranded or solid copper conductor，Top-coated.
|
|
■Rated temperature:105℃.
|
|
■Rated voltage:300Volts
|
|
■Passes UL&CUL， HORIZonTAL flamt test
|
|
說明：
|
|
■導體使用單股或絞線裸銅或鍍錫銅或先絞后鍍。
|
|
■額定溫度：105℃
|
|
■額定電壓：300Volts
|
|
■可通過UL 及 CUL ，水平燃燒測試
|
|
Applications:
|
|
■Internal wiring of appliances
|
|
Computers.
|
|
應用：
|
|
■用于電子，電器，電腦設備內部連接。
|
|
UL Style& CUL Type
|
線號
|
Conductor
導體
|
Pitch
間距
|
Cores
芯數
|
Insulation Thickness絕緣厚度
|
Overall
Dimeter
完成外徑
|
Conductor
Resistance at 20℃導體電阻
|
|
線數/線徑
|
|
AWG
|
mm
|
NO
|
mm
|
mm
|
Ω/KM
|
|
UL4384 CUL AWM I/A
|
26
|
7/0.16
|
1.5或
1.4
|
2
|
0.38
|
1.4×2.9/2.8
|
150.00
|
|
3
|
1.4×4.4/4.2
|
|
4
|
1.4×5.9/5.0
|
|
5
|
1.4×7.4/7.0
|
|
6
|
1.4×8.9/8.4
|
|
7
|
1.4×10.4/9.8
|
|
8
|
1.4×11.9/11.2
|
|
9
|
1.4×13.4/12.6
|
|
10
|
1.4×14.9/14
|
|
11
|
1.4×16.4/15.4
|
|
12
|
1.4×17.9/16.8
|
|
13
|
1.4×19.4/18.2
|
|
14
|
1.4×20.9/19.6
|
|
15
|
1.4×22.4/21
|
|
UL4384 CUL AWM I/A
|
26
|
7/0.16
|
2.00
|
2
|
0.38
|
1.4×3.4
|
150.00
|
|
3
|
1.4×5.4
|
|
4
|
1.4×7.4
|
|
5
|
1.4×9.4
|
|
6
|
1.4×11.4
|
|
7
|
1.4×13.4
|
|
8
|
1.4×15.4
|
|
9
|
1.4×17.4
|
|
10
|
1.4×19.4
|
|
11
|
1.4×21.4
|
|
12
|
1.4×23.4
|
|
13
|
1.4×25.4
|
|
14
|
1.4×27.4
|
|
15
|
1.4×29.4
|
|
16
|
1.4×31.4
|
|
17
|
1.4×33.4
|
|
UL4384 CUL AWM I/A
|
26
|
7/0.16
|
2.54
|
2
|
0.38
|
1.4×3.9
|
150.00
|
|
3
|
1.4×6.4
|
|
4
|
1.4×8.9
|
|
5
|
1.4×11.4
|
|
6
|
1.4×13.9
|
|
7
|
1.4×16.4
|
|
8
|
1.4×18.9
|
|
9
|
1.4×21.4
|
|
10
|
1.4×23.9
|
|
11
|
1.4×26.4
|
|
12
|
1.4×28.9
|
|
13
|
1.4×31.4
|
|
14
|
1.4×33.9
|
|
15
|
1.4×36.4
|
|
16
|
1.4×38.9
|
|
17
|
1.4×41.4
|
|
以上數據僅供參考，不作為正式的設計依據，產品規格以雙方確認的規格書承認為準！最終解釋權規穩暢電子制品有限公司所有
|

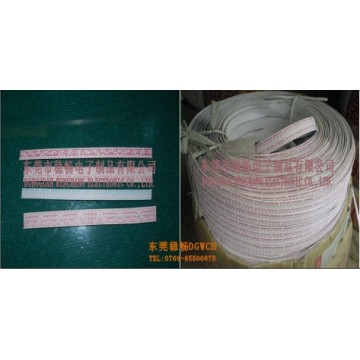

點擊圖片查看原圖
