| Product Description: | |||||||
| ■Tinned ,annealed,stranded or solid copper conductor，Top-coated. | |||||||
| ■Rated temperature:125℃. | |||||||
| ■Rated voltage:600Volts&750Volts | |||||||
| ■Passes UL&CUL， HORIZonTAL flamt test | |||||||
| 說明： | |||||||
| ■導體使用單股或絞線裸銅或鍍錫銅或先絞后鍍。 | |||||||
| ■額定溫度：105℃ | |||||||
| ■額定電壓：300Volts | |||||||
| ■可通過UL 及 CUL ，水平燃燒測試 | |||||||
| Applications: | |||||||
| ■Internal wiring of appliances | |||||||
| Computers. | |||||||
| 應用： | |||||||
| ■用于電子，電器，電腦設備內部連接。 | |||||||
| UL Style& CUL Type | 線號 |
Conductor 導體 |
Pitch 間距 |
Cores 芯數 |
Insulation Thickness絕緣厚度 |
Overall Diameter 完成外徑 |
Conductor Resistance at 20℃導體電阻 |
| 線數/線徑 | |||||||
| AWG | mm | NO | mm | mm | Ω/KM | ||
| UL4412 CULAWM I/A | 24 |
7/0.203或 11/0.16 |
2.2或 2.3 |
2 | 0.76 | 2.2*4.4/4.6 | 94.20 |
| 3 | 2.2*6.6/6.8 | ||||||
| 4 | 2.2*8.8/9.0 | ||||||
| 5 | 2.2*11/11.2 | ||||||
| 6 | 2.2*13.2/13.4 | ||||||
| UL4412 CUL AWM I/A | 24 | 7/0.203 | 3.96 | 2 | 0.76 | 2.2×7.92 | 94.20 |
| 3 | 2.2×11.88 | ||||||
| 4 | 2.2×15.84 | ||||||
| 5 | 2.2*19.8 | ||||||
| 6 | 2.2*23.76 | ||||||
| 以上數據僅供參考，不作為正式的設計依據，產品規格以雙方確認的規格書承認為準！最終解釋權規穩暢電子制品有限公司所有 | |||||||
|
|||||||||||||||||||||||||||||||||

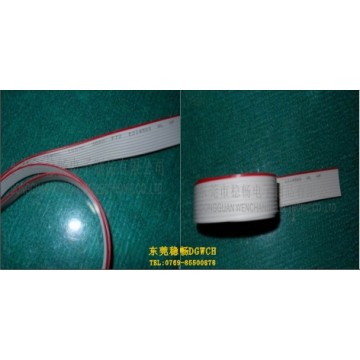

點擊圖片查看原圖
